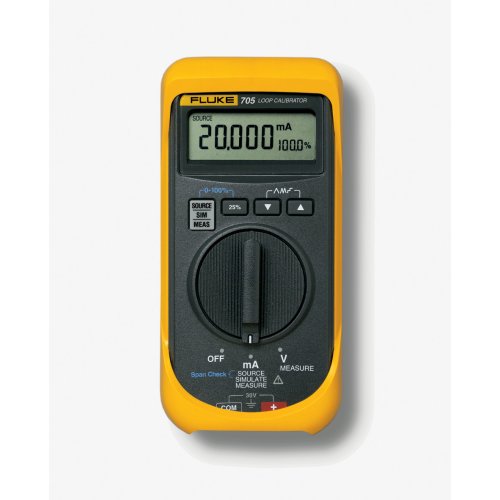

FLUKE luskalibrator 0-28vdc 0-24ma FLUKE-705

Artikelnummer 4250382

Artikelnummer: 4250382
Artikelnummer fabrikant: 665091
EAN Code: 0095969062565

Fluke, Proceskalibrator, FLUKE-705, Luskalibrator, Digitaal, 1 µA, 0,001 mA, 0,001 mA

Fluke 705 loop calibrator provides a cost-effective; integrated solution for calibrating milliamp loopsThe Fluke 705 is a cost-effective; integrated solution for calibration; repair and maintenance of milliamp loops. It features a large display and simple; pushbutton interface for ease of use. Plus; it offers the other capabilities you need most to calibrate mA loops including:mA sourcing; simulation and measurement0.02% accuracy and 0.001 mA resolutionSimultaneous mA and % of span displaySelectable step or ramp outputs24 V Loop supply with mA measure0-28 VDC measurement to check Loop VoltageEasy battery exchange without opening the caseIncludes “span check” for fast confirmation of zero and span.Provides selectable slow ramp; fast ramp; and step to provide smooth outputs for valve slewing and loop functional tests.Includes a 24 volt internal loop supply; so you can power and read a transmitter at the same time without a DMM.Runs on a single 9 V battery that is easily changed without b

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 4250382
Artikelnummer fabrikant: 665091
EAN Code: 0095969062565

Fluke, Proceskalibrator, FLUKE-705, Luskalibrator, Digitaal, 1 µA, 0,001 mA, 0,001 mA

Fluke 705 loop calibrator provides a cost-effective; integrated solution for calibrating milliamp loopsThe Fluke 705 is a cost-effective; integrated solution for calibration; repair and maintenance of milliamp loops. It features a large display and simple; pushbutton interface for ease of use. Plus; it offers the other capabilities you need most to calibrate mA loops including:mA sourcing; simulation and measurement0.02% accuracy and 0.001 mA resolutionSimultaneous mA and % of span displaySelectable step or ramp outputs24 V Loop supply with mA measure0-28 VDC measurement to check Loop VoltageEasy battery exchange without opening the caseIncludes “span check” for fast confirmation of zero and span.Provides selectable slow ramp; fast ramp; and step to provide smooth outputs for valve slewing and loop functional tests.Includes a 24 volt internal loop supply; so you can power and read a transmitter at the same time without a DMM.Runs on a single 9 V battery that is easily changed without b

Eigenschappen
Algemeen
Aantal kanalen 1
Meetwaardegeheugen Nee
Indicatie/aanduiding Digitaal
Interface Nee
Analoge balkaanduiding Nee
Kleinste resolutie gelijkstroom 1 µA
Max. stroommeetbereik DC 0,024 A
Meervoudige indicatie Ja
Thermo-element RTD Nee
Thermo-element type B Nee
Thermo-element type E Nee
Thermo-element type J Nee
Thermo-element type K Nee
Thermo-element type N Nee
Thermo-element type R Nee
Thermo-element type S Nee
Thermo-element type T Nee
Model Proceskalibrator
Drukmeting Nee
Spanning geven 0 V ... 10V Nee
Spanning geven 0 mV ... 100mV Nee
Stroom geven 0 mA … 24 mA Ja
Thermo-element type L Nee
Thermo-element type U Nee
Spanning geven 0 V ... +/- 300 mV Nee
Spanning geven 0 V ... 3 V Nee
Spanning geven 0 V ... 15 V Nee
Laagste resolutie stroom geven 0,001 mA
Stroomdaling (transmitter simulator) 0 mA ... 24 mA Ja
Laagste resolutie stroomdaling 0,001 mA
Weerstand geven Nee
Thermo-element RTD Pt100 Nee
Thermo-element RTD Pt1000 Nee
Thermo-element RTD Ni100 Nee
Thermo-element RTD Ni1000 Nee
Frequentie en impulsgroepen geven Nee
Helling- en trapfunctie Ja
Gelijktijdig meten en geven Ja
Kalibratiefunctie Nee
Land van herkomst Verenigde Staten (US)
