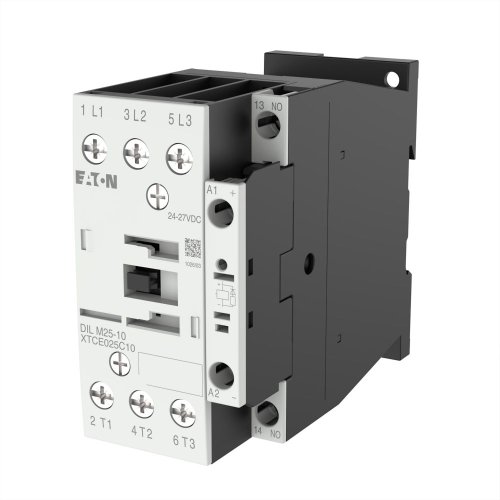

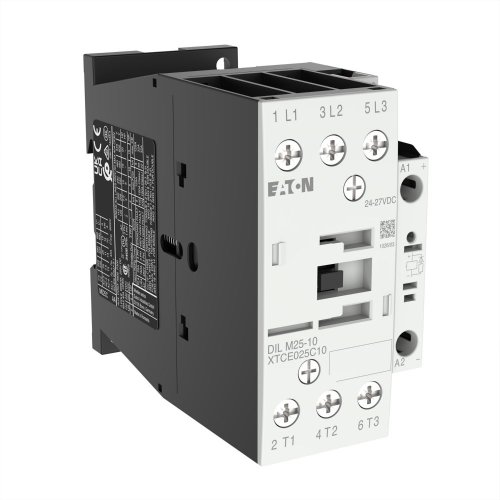

EATON magneetschakelaar 24vdc 11 kw dilm25-10

Artikelnummer 277146

Artikelnummer: 277146
Artikelnummer fabrikant: 277146
EAN Code: 4015082771461

Eaton, DILM, DILM, Magneetschakelaar DILM25-10(RDC24) (24-27VDC), 11kW, 1m, 0v, Schroefaansluiting, 24.000 - 690.000, 24.000 - 690.000, DC

Schakelaar, Toepassing: Schakelaars voor motoren, Schakelaars tot 170 A, 3-polig, Gebruikscategorie: AC-1: Niet-inductieve of licht-inductieve belasting, weerstandsovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, insteken, omkeren, tippen, Aansluittechniek: Schroefaansluitingen, Opmerkingen: Ook geschikt voor motoren met rendementsklasse IE3., IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking., Aantal polen: 3-polig, Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 25 A, Nominale bedrijfsstroom AC-1 Conventionele thermische stroom met vrije lucht, 3-polig

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 277146
Artikelnummer fabrikant: 277146
EAN Code: 4015082771461

Eaton, 45, 85, 97, 11 kW, 3, 1, 25 A, 45 A, 0.000 - 0.000 V, 0.000 - 0.000 V, 24.000 - 27.000 V, Schroefaansluiting, 24.000 - 690.000, 24.000 - 690.000, DC, 13 A, 6 kW, 11 kW, DILM

Eigenschappen
Algemeen
Breedte 45
Hoogte 85
Diepte 97
Bedrijfsspanning bij AC 60 Hz 24.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 24.000 - 690.000
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 27.000 V
Modulaire uitvoering (voor railmontage) Nee
Nom. vermogen bij AC-3, 400 V 11 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 0
Nom. bedrijfsstroom Ie bij AC-3, 400 V 25 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 45 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 13 A
Nom. vermogen bij AC-4, 400 V 6 kW
Nom. vermogen NEMA 11 kW
Model DILM
